Bank-of-Mufasa

A simple proof of concept banking system built on Microservices Architecture

Technologies

1. SpringBoot.

2. Spring Cloud : config server

   eureka

   Gateway server.

3. Resilience4J framework
4. Spring Sleuth & Zipkin Server (Distributed tracing & log aggregation)
5. Prometheus & Grafana (Monitoring) 6.`Docker
6. Kubernetes : Google Kubernetes Engine
7. Spring Security : Oauth2
8. Helm 10.Keycloak auth server 11.Docker Hub

Pre-Usage

Shout out to EazyBytes for teaching me most of what i implemented in this project.

Getting Started

-Before running this solution you need to have docker installed in your local system.

• All the images have been uploaded to docker hub : Bank of Mufasa
• Navigate download the docker-compose file from here: Docker-compose file
• On your local environment’s terminal run ` docker run -p 7080:8080 -e KEYCLOAK_ADMIN=admin -e KEYCLOAK_ADMIN_PASSWORD=admin quay.io/keycloak/keycloak:18.0.0 start-dev ` to spin up a keycloak server on your local env.
• Now in the location of the downloaded docker-compose file; run docker-compose up to spin up all the microservices that power this project.

Alternatively :

-Clone the project and generate you own docker images from the following springBoot projects :

1. Accounts :

has a docker file to build its image command: mvn install + docker build . -t mufasa/accounts

2. Cards - command `mvn spring-boot:build-image`
3. ConfigServer - command `mvn spring-boot:build-image`
4. EurekaServer - command `mvn spring-boot:build-image`
5. GatewayServer - command `mvn spring-boot:build-image`
6. Loans - command `mvn spring-boot:build-image`
7. Zipkin - command `docker run -p 9411:9413 openzipkin/zipkin `
8. Keycloak server - command `docker run -p 7080:8080 -e KEYCLOAK_ADMIN=admin -e KEYCLOAK_ADMIN_PASSWORD=admin quay.io/keycloak/keycloak:18.0.0 start-dev`

• All the shared configurations are read from this repo feel free to create you own and change the location of the git server or you can leave as is i will leave the repo server active for as long as github exists Haha.
• After after you have all the docker images, run them guided by the ports defined in the application.properties file of each microservice but in the following order zipkin->keycloak->configserver->eurekaserver->accounts->loans->cards->gatewayserver And felicidades! you are ready to test build more on this project !

Testing

Note:

1. All the endpoints except the loans service endpoints require authentication while some require authorization too.
2. All endpoints should go through the gatewayserver : http://localhost:8072/mufasa/*
3. The endpoints have been secured using two approaches : Oauth2 client credentials grant flow and Oauth2 Authorization code grant flow . The submitted code uses the latter but you can pull this accounts image and gatewayserver image from my dockerhub to test using client credentials grant flow / clone the code from client-credentials-grantflow branch
   • Log in to keycloak server using the credentials you used when starting the container and do the following: ```java

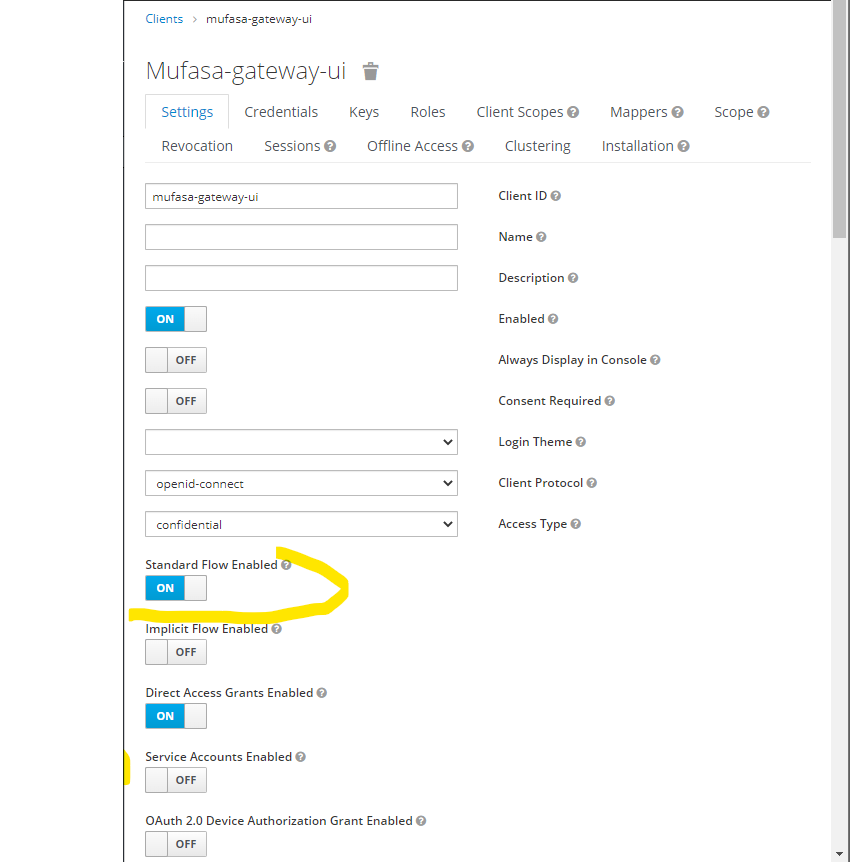

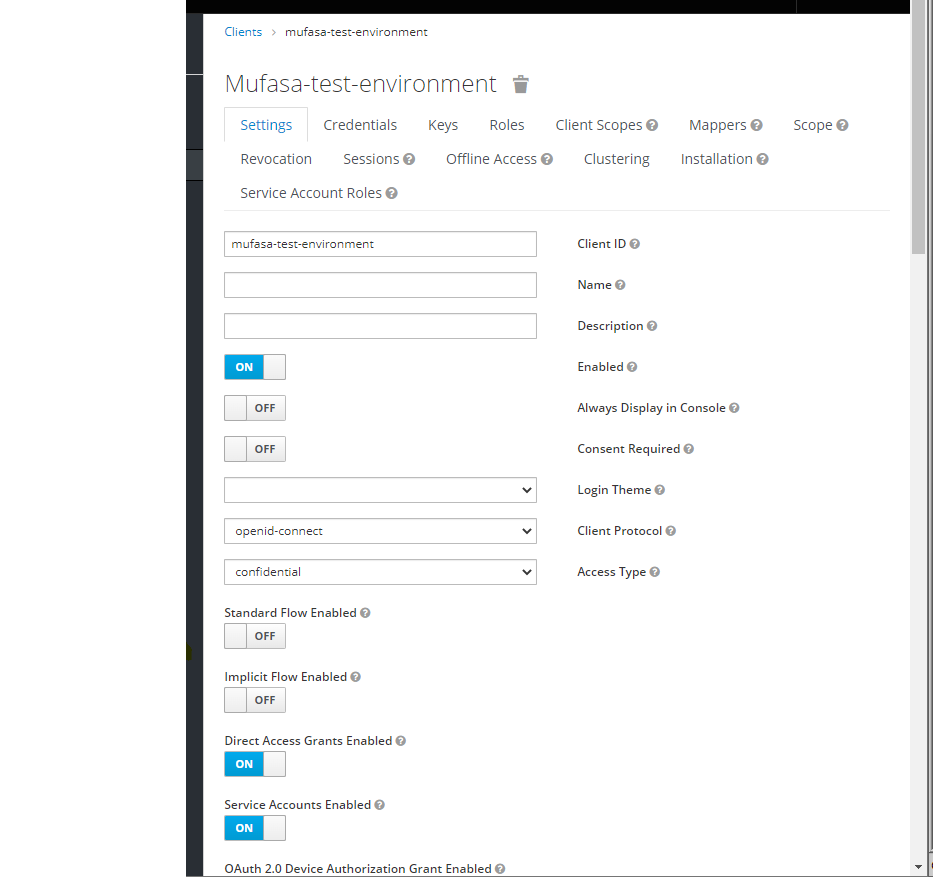

4. Create two accounts : mufasa-test-environment(Oauth2 client credentials grant flow) & mufasa-gateway-ui(Oauth2 Authorization code grant flow . The submitted code uses the latter but you can pull this [accounts microservice image) to use the former. ``

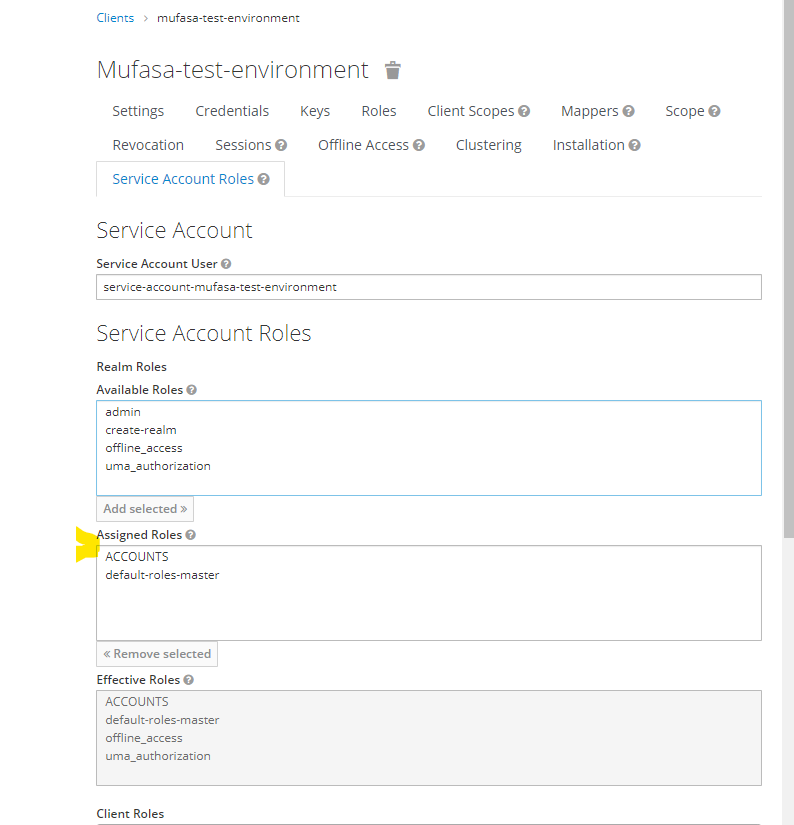

2. Create a role called ACCOUNTS and assign it to mufasa-test-environment client.

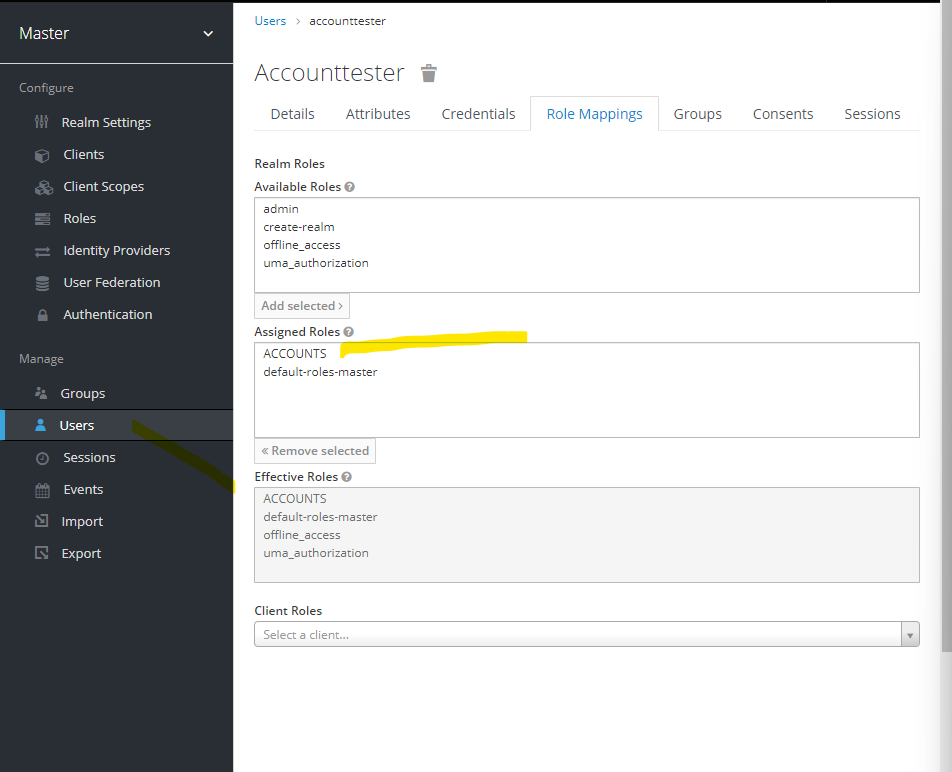

3. Create user and give them ACCOUNTS role

Testing using oauth2 client credentials grant flow

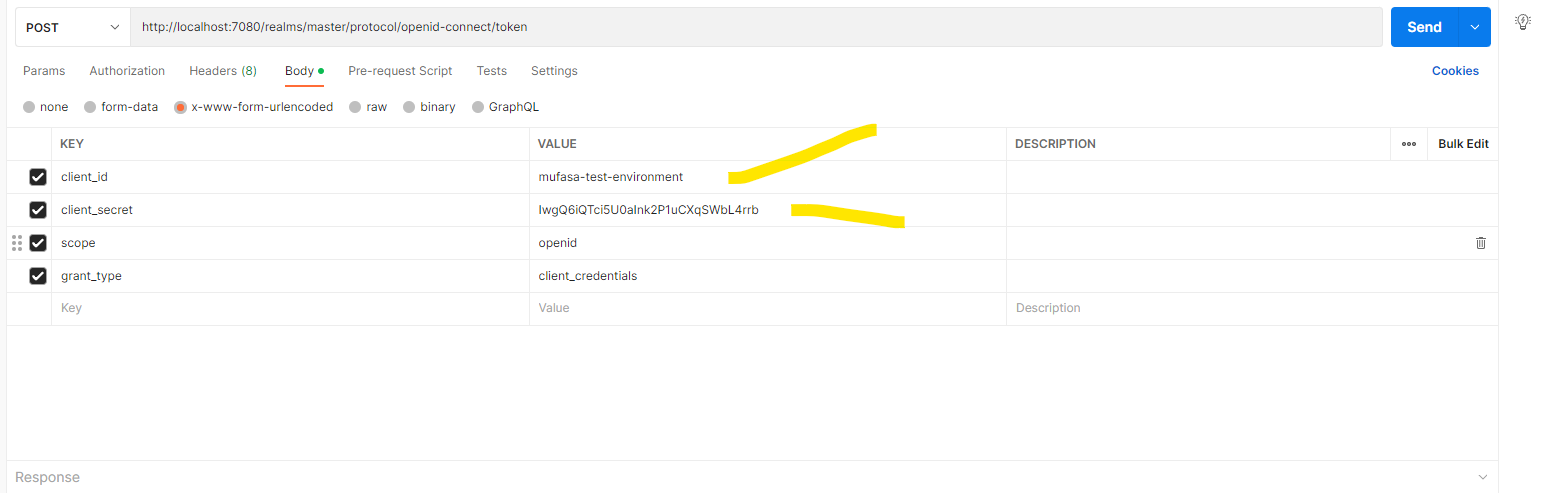

- a `post` call to : `http://localhost:7080/realms/master/protocol/openid-connect/token` to get a token`

![Requesting token](/Bank-of-Mufasa/images/client-grant-flow-postrequest.png)

- Call the endpoints using this generated token.

Testing using oauth2 client credentials grant flow

- call any `get` rest API from the browser.
- the URL should be redirected to a keycloak login page.
- login with a user with the required roles to access that resource.

Testing in google cloud platform

- log in to your google cloud platform and select a GKE(Google Kubernetes Engine resource).
- Create a cluster and connect to it in your local terminal.

`Note` :
1. You can choose to deploy each microservice at a time to the kubernetes cluster/ you can use `helm` charts provided in this repo/helm to deploy all the microservices at once.

userful commands to use with Kubernetes and Helm

kubectl scale deployment accounts-deployment --replicas=3

kubectl describe pod <pod name>

kubectl set image deployment accounts-deployment accounts=bobmwas/mufasa:accounts-k8s

kubectl get events --sort-by=.metadata.creationTimestamp

kubectl rollout history deployment accounts-deployment

kubectl rollout undo deployment accounts-deployment --to-revision=1

helm create <chartName>

helm dependencies build

helm template .

helm install <deployment name> <helm env folder>

helm upgrade <deployment name> <helm env folder>

helm history <deployment name>

helm rollback <deployment name> <revision number>

helm uninstall <deployment name>

helm list

gcloud config set project <project name>

docker system prune -a :- removes all stopped containers,un used images cache etc

docker stop $(docker container ls -q) :-stops all running containers

Resources

1. My DockerHub repository :
2. Google kubernetes Engine :
3. Helm
